کامپیوتر ODROID-C0

۰ تومان

کامپیوتر ODROID-C0 یک رایانه برای کسانی است که مایل به ایجاد برنامه های انعطاف پذیر و قابل حمل هستند. این نسخه سخت افزاریODROID-C1+ به حداقل رسیده است. مدار تغذیه باتری کاملاً یکپارچه شده است. کافی است یک باتری 3.7 ولت Li+ را وصل کرده و آن را موبایل کنید. برای پروژه های IoT ، پوشیدنی ها و سایر برنامه هایی که به دستگاهی سبک نیاز دارند بسیار مناسب است.

همه تصاویر سیستم عامل ODROID-C1/C1+ کاملاً با ODROID-C0 سازگار هستند. برخی از سیستم عامل های مدرن که بر روی ODROID-C0 اجرا می شوند عبارتند از Ubuntu ، Android ، Arch Linux ، Debian و OpenELEC، با هزاران بسته نرم افزاری منبع باز رایگان. همچنین تعداد زیادی سیستم عامل سفارشی برای استفاده از ODROID-C0 به عنوان مرکز چند رسانه ای ، Kodi ، ایستگاه بازی ، سرور بدون سر و موارد دیگر در جامعه ODROID موجود است.

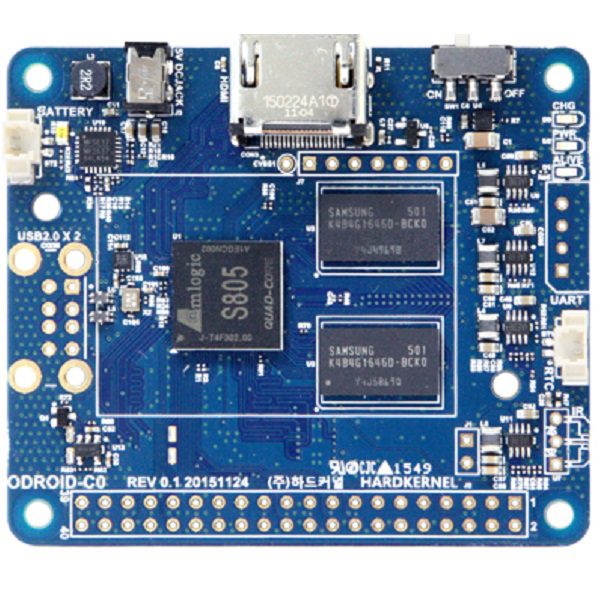

ODROID-C0

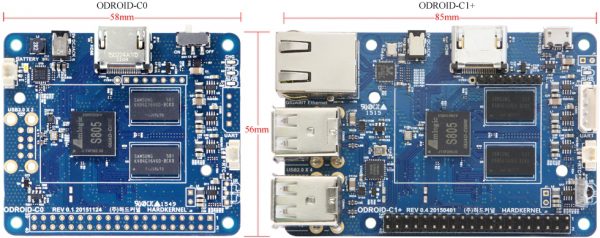

The ODROID-C0 is a computer for those who wish to make a more flexible and portable applications. It is a minimized hardware version of the ODROID-C1+. Battery power circuit is fully integrated. Just attach a 3.7V Li+ battery and make it mobile. It is highly suitable for IoT projects, wearables, and other applications that require a lightweight device.All the ODROID-C1/C1+ OS images are fully compatible with the ODROID-C0. Some of the modern operating systems that run on the ODROID-C0 are Ubuntu, Android, Arch Linux, Debian, and OpenELEC, with thousands of free open-source software packages available. There are also plenty of custom OS available for using the ODROID-C0  as a multimedia center, Kodi, gaming station, headless server and much more at our ODROID community.
The key features and improvements over the original ODROID-C1+:* Amlogic ARM® Cortex®-A5(ARMv7) 1.5Ghz quad core CPUs
* Mali™-450 MP2 GPU (OpenGL ES 2.0/1.1 enabled for Linux and Android)
* 1Gbyte DDR3 SDRAM
* eMMC4.5 HS200 Flash Storage slot / UHS-1 SDR50 MicroSD Card slot
* 40pin + 7pin GPIOs (unpopulated)
* USB 2.0 Host x 2 (unpopulated)
* Infrared(IR) Receiver (unpopulated)
* Li+ rechargeable battery charger for wearable and robots application
* Battery voltage level is accessible via ADC in the SoC.
* DC/DC step-down converters for higher power efficiency
* DC/DC step-up converter for 5Volt rails (USB host and HDMI) from a Li-Polymer battery
* DIY friendly C0 Connector Pack is available for handy prototyping

در انبار موجود نمی باشد

0 افرادی که هم اکنون این محصول را بازدید می کنند



توضیحات

ODROID-C0

The ODROID-C0 is a computer for those who wish to make a more flexible and portable applications. It is a minimized hardware version of the ODROID-C1+. Battery power circuit is fully integrated. Just attach a 3.7V Li+ battery and make it mobile. It is highly suitable for IoT projects, wearables, and other applications that require a lightweight device.All the ODROID-C1/C1+ OS images are fully compatible with the ODROID-C0. Some of the modern operating systems that run on the ODROID-C0 are Ubuntu, Android, Arch Linux, Debian, and OpenELEC, with thousands of free open-source software packages available. There are also plenty of custom OS available for using the ODROID-C0  as a multimedia center, Kodi, gaming station, headless server and much more at our ODROID community.
The key features and improvements over the original ODROID-C1+:* Amlogic ARM® Cortex®-A5(ARMv7) 1.5Ghz quad core CPUs
* Mali™-450 MP2 GPU (OpenGL ES 2.0/1.1 enabled for Linux and Android)
* 1Gbyte DDR3 SDRAM
* eMMC4.5 HS200 Flash Storage slot / UHS-1 SDR50 MicroSD Card slot
* 40pin + 7pin GPIOs (unpopulated)
* USB 2.0 Host x 2 (unpopulated)
* Infrared(IR) Receiver (unpopulated)
* Li+ rechargeable battery charger for wearable and robots application
* Battery voltage level is accessible via ADC in the SoC.
* DC/DC step-down converters for higher power efficiency
* DC/DC step-up converter for 5Volt rails (USB host and HDMI) from a Li-Polymer battery
* DIY friendly C0 Connector Pack is available for handy prototyping
