کامپیوتر ODROID-C2

Name: کامپیوتر ODROID-C2 - بهرام کیت
SKU: 00000349194
Availability: OutOfStock

۰ تومان

ODROID-C2 قدرتمندترین رایانه تک بورد کم هزینه موجود است و همچنین یک دستگاه بسیار متنوع است. مجهز به پردازنده چهار هسته ای Amlogic ، پردازنده گرافیکی پیشرفته مالی و Gigabit Ethernet ، می تواند به عنوان یک مجموعه خانگی سینمای خانگی ، یک رایانه عمومی برای وبگردی ، بازی و معاشرت ، یک ابزار جمع و جور برای کارهای دانشگاهی یا اداری عمل کند. نمونه سازی دستگاه برای خرابی سخت افزار ، کنترل کننده اتوماسیون خانگی ، ایستگاه کاری برای توسعه نرم افزار و موارد دیگر.

ODROID-C2

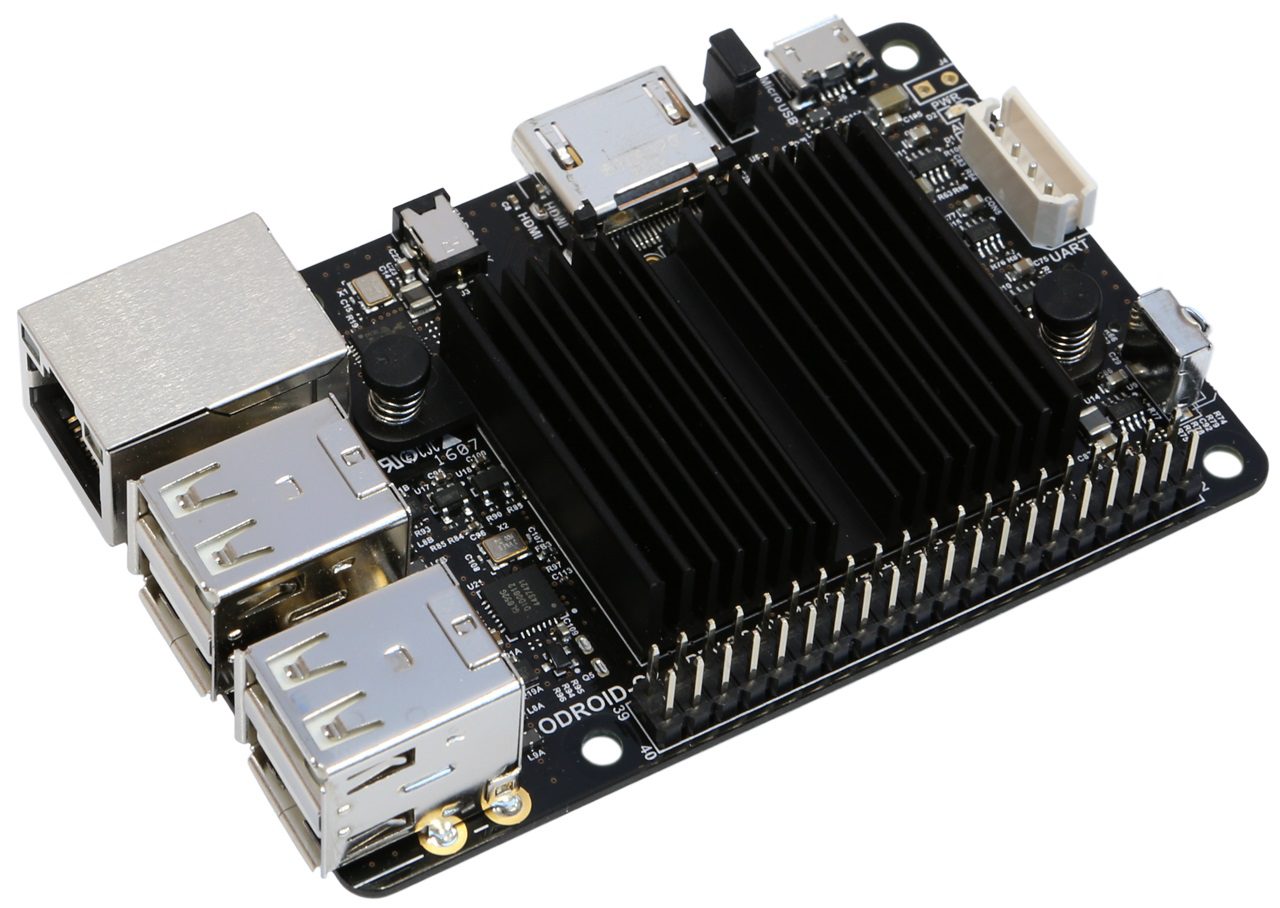

The ODROID-C2 is a 64-bit quad-core single board computer(SBC) that is one of the most cost-effective 64bit development boards available in the ARM world. It can function as a home theater set-top box, a general purpose computer for web browsing, gaming and socializing, a compact tool for college or office work, a prototyping device for hardware tinkering, a controller for home automation, a workstation for software development, and much more.

Some of the modern operating systems that run on the ODROID-C2 are Ubuntu, Android, ARCHLinux, Debian, with thousands of free open-source software packages available. The ODROID-C2 is an ARM device — the most advanced architecture for mobile devices and embedded 64-bit computing. The ARM processor’s small size, reduced complexity and low power consumption makes it very suitable for miniaturized devices such as wearables and embedded controllers.

* Amlogic ARM® Cortex®-A53(ARMv8) 2Ghz quad core CPUs
* Mali™-450 GPU (3 Pixel-processors + 2 Vertex shader processors)
* 2Gbyte DDR3 SDRAM
* Gigabit Ethernet
* HDMI 2.0 4K/60Hz display
* H.265 4K/60FPS and H.264 4K/30FPS capable VPU
* 40pin GPIOs + 7pin I2S
* eMMC5.0 HS400 Flash Storage slot / UHS-1 SDR50 MicroSD Card slot
* USB 2.0 Host x 4, USB OTG x 1 (power + data capable)
* Infrared(IR) Receiver
* Ubuntu 16.04 or Android 5.1 Lollipop based on Kernel 3.14LTS

در انبار موجود نمی باشد

Add to compare

افزودن به علاقه مندی

0 افرادی که هم اکنون این محصول را بازدید می کنند

شناسه محصول: 00000349194 دسته: Odroid, برد آماده ARM برچسب: ARM Board, mini computer, Odroid, اودروید, برد های ARM, مینی کامپیوتر

توضیحات
نظرات (0)

توضیحات

کامپیوتر ODROID-C2

معرفی ODROID-C2:

برخی از سیستم عامل های مدرن که بر روی ODROID-C2 اجرا می شوند عبارتند از: اوبونتو ، اندروید ، فدورا ، ARCHLinux ، دبیان و OpenELEC ، با هزاران بسته نرم افزاری منبع باز رایگان. ODROID-C2 یک دستگاه ARM است-پرکاربردترین معماری برای دستگاه های تلفن همراه و محاسبه 64 بیتی تعبیه شده است. اندازه کوچک پردازنده ARM ، پیچیدگی کمتر و مصرف کم انرژی ، آن را برای دستگاه های کوچک مانند پوشیدنی ها و کنترل های تعبیه شده بسیار مناسب می کند.

می تواند اوبونتو ، Android 5.1*و سایر توزیع های سیستم عامل لینوکس را اجرا کند.

برخی از سیستم عامل های مدرن که بر روی ODROID-C2 اجرا می شوند عبارتند از: اوبونتو ، اندروید ، ARCHLinux ، دبیان ، با هزاران بسته نرم افزاری منبع باز رایگان. ODROID-C2 یک دستگاه ARM است-پیشرفته ترین معماری برای دستگاه های تلفن همراه و محاسبه 64 بیتی تعبیه شده است. اندازه کوچک پردازنده ARM ، پیچیدگی کمتر و مصرف کم انرژی ، آن را برای دستگاه های کوچک مانند پوشیدنی ها و کنترل های تعبیه شده بسیار مناسب می کند.

* پردازنده های چهار هسته ای Amlogic ARM® Cortex®-A53 (ARMv8) 1.5Ghz
* GPU Mali -450 (3 پردازنده پیکسل + 2 پردازنده سایه زن ورتکس)
* 2 گیگابایت DDR3 SDRAM
* اترنت گیگابیت
* صفحه نمایش HDMI 2.0 4K/60Hz
* H.265 4K/60FPS و H.264 4K/30FPS دارای VPU
* GPIO های 40 پین + I2S 7 پین
* اسلات حافظه فلش eMMC5.0 HS400 / کارت حافظه MicroSD UHS-1 SDR50
* USB 2.0 میزبان x 4 ، USB OTG x 1 (قدرت + قابلیت داده)
* گیرنده مادون قرمز (IR)
* اوبونتو 16.04 یا Android 6.0 Marshmallow بر اساس Kernel 3.14LTS

The ODROID-C2 is esteemed to be the most powerful low-cost single board computer available, as well as being an extremely versatile device. Featuring a quad-core Amlogic processor, advanced Mali GPU, and Gigabit Ethernet, it can function as a home theater set-top box, a general purpose computer for web browsing, gaming and socializing, a compact tool for college or office work, a prototyping device for hardware tinkering, a controller for home automation, a workstation for software development, and much more.

Some of the modern operating systems that run on the ODROID-C2 are Ubuntu, Android, Fedora, ARCHLinux, Debian, and OpenELEC, with thousands of free open-source software packages available. The ODROID-C2 is an ARM device – the most widely used architecture for mobile devices and embedded 64-bit computing. The ARM processor’s small size, reduced complexity and low power consumption makes it very suitable for miniaturized devices such as wearables and embedded controllers.

It can run Ubuntu, Android 5.1*, and other Linux OS distributions.

* Amlogic ARM® Cortex®-A53(ARMv8) 1.5Ghz quad core CPUs
* Mali™-450 GPU (3 Pixel-processors + 2 Vertex shader processors)
* 2Gbyte DDR3 SDRAM
* Gigabit Ethernet
* HDMI 2.0 4K/60Hz display
* H.265 4K/60FPS and H.264 4K/30FPS capable VPU
* 40pin GPIOs + 7pin I2S
* eMMC5.0 HS400 Flash Storage slot / UHS-1 SDR50 MicroSD Card slot
* USB 2.0 Host x 4, USB OTG x 1 (power + data capable)
* Infrared(IR) Receiver
* Ubuntu 16.04 or Android 6.0 Marshmallow based on Kernel 3.14LTS

منبع این مطالب:

https://www.hardkernel.com/

ODROID-C2

STORY ABOUT THE ODROID-C2

Here is the comparisons to give you better understanding of ODROID-C2.

ODROID-C2 vs ODROID-C1 vs Raspberry Pi2

Both are Linux-friendly ARM® single-board computers for various applications and purposes.

Hardware Comparison

The ODROID-C2 has many advantages over the Raspberry Pi2.

The processor is an S905 2GHz Quad-core from Amlogic with 2GByte DDR3 RAM, Gigabit-Ethernet and IR-receiver. The size of this computer is still only 85 x 56 mm with a weight of 40g, and offers silent operation, 2~5W average power usage, and instant portability, since it fits in a shirt pocket.

One powerful feature of the ODROID-C2 is an SD 3.01 standard compatible UHS-1 MicroSD card, as well as the faster eMMC module, can be ordered with the ODROID-C2, and arrives with the popular Ubuntu operating system already installed. Insert the MicroSD card into the slot, connect a monitor, a keyboard, a mouse, Ethernet and power cable, and that’s all you need to do to use the ODROID-C2! Browse the web, play games, run office programs, edit photos, develop software, and watch videos right away.

The ODROID-C2 also has a 40+7pin GPIO header to make a physical interface between the board and the outside world. The 40+7pin interface headers include PWM, I2C, I2S, UART, ADC and GPIO function.

The IR receiver and ADC features on the ODROID-C2 offer many options for building great DIY projects.

	ODROID-C2	ODROID-C1+	RPi 2 Model B
CPU	Amlogic S905 SoC 4 x ARM Cortex-A53 2GHz 64bit ARMv8 Architecture @28nm	Amlogic S805 SoC 4 x ARM Cortex-A5 1.5GHz 32bit ARMv7 Architecture @28nm	Broadcom BCM2836 4 x ARM Cortex-A7 900MHz 32bit ARMv7 Architecture @40nm
GPU	3 x ARM Mali-450 MP 700MHz	2 x ARM Mali-450 MP 600MHz	1 x VideoCore IV 250MHz
RAM	2GB 32bit DDR3 912MHz	1GB 32bit DDR3 792MHz	1GB 32bit LP-DDR2 400MHz
Flash Storage	Micro-SD UHS-1 @83Mhz/SDR50 or eMMC5.0 storage option	Micro-SD UHS-1 @78Mhz/SDR50 or eMMC4.5 storage option	Micro-SD @ 50Mhz/SDR25 No eMMC storage option
USB2.0 Host	4 Ports	4 Ports	4Ports
USB2.0 Device / OTG	1 Port for Linux USB Gadget device or USB host	1 Port for Linux USB Gadget device or USB host	No
Ethernet / LAN	10 / 100 / 1000 Mbit/s	10 / 100 / 1000 Mbit/s	10 / 100 Mbit/s
Video Output	HDMI 2.0 4K / 60Hz	HDMI 1.4	HDMI 1.4 / RCA / DSI
Audio Output	HDMI / I2S	HDMI / I2S	MDMI / 3.5mm Jack / I2S
Camera Input	USB 720p	USB 720p	MIPI CSI 1080p
Real Time Clock	No (unless using an add-on module)	Yes (on-board RTC)	No (unless using an add-on module)
IR Receiver	Yes (on-board IR sensor)	Yes ( on-board IR sensor)	No (unless using an add-on module)
IO Expansion	40 + 7 pin port GPIO / UART / I2C / I2S / ADC	40 + 7 pin port GPIO / UART / SPI / I2C / I2S / ADC	40 pin port GPIO / UART / SPI / I2S
ADC	10bit SAR 2 channels	10bit SAR 2 channels	No (unless using an add-on board)
Heat sink	Included	Included	Optional
Size	85 x 56 mm (3.35 x 2.2 inch)	85 x 56 mm (3.35 x 2.2 inch)	85 x 56 mm (3.35 x 2.2 inch)
Weight	40g (1.41oz)	40g (1.41oz)	42g (1.48oz)
Price	$40	$37	$35

CPU and RAM performance comparison

We ran several different benchmarks to measure the computing power on the ODROID-C2. The same tests were performed on the Raspberry Pi 2, ODROID-C1, ODROID-U3 and ODROID-XU4 for easier comparison.The values of the test results were scaled uniformly for comparison purposes. The computing power of the C2 was measured to be ~2-3 times faster than the latest Raspberry Pi 2 thanks to the 2Ghz Cortex-A53 cores and much higher memory bandwidth. The high-performance 2GB DDR3 RAM is an additional advantage allowing most programs to run smoothly on the C2.

Benchmarks (Index Score)	Raspberry Pi 2	ODROID-C1	ODROID-U3	ODROID-C2	ODROID-XU4
Dhrystone-2	1006.6	1262.8	2300.7	2623.9	3994.1
Double-Precision Whetstone (x3)	1076.1	1318.8	2217.9	3015.6	3074.7
Nbench 2.2.3 Integer (x40)	840.0	1208.0	1648.0	1764.0	2451.1
Nbench 2.2.3 FP (x100)	809.0	1050.0	1860.0	2210.1	2536.9
SysBench CPU (1/T * 50000)	6669.3	902.2	1497.0	2040.8	2891.8
Memory BandWidth (mbw 100 : MiB/s)	557.1	1069.6	736.6	3171.6	3243.8

Antutu Scores on Android5.1 Lollipop

ODROID-C2 shows around 33,700pts while ODROID-C1+ shows around 21,200pts. So you can run Android OS more smoothly. Note that the XU4 shows around 51,000pts thanks to the much faster A15 cores and Mali-T628 MP6 GPU cores. But the ODROID-C2 has higher rate of the “Performance per Dollar” probably.

Storage I/O comparison The C2 can boot from a MicroSD card or an eMMC module. The MicroSD interface supports the higher performance UHS-1 mode as well. File access of a 512MB file (read/write) on two different storage options shows distinct performance differences. The eMMC 5.0 storage is ~7x faster than the MicroSD Class-10 card in read tests. The MicroSD UHS-1 card is ~2x faster than the MicroSD Class-10 card in read tests. The MicroSD UHS-1 card provides a great low-cost option for many applications!To obtain the results in the storage I/O comparison graph, type the following lines at a command prompt.
Write speed command :
$ dd if=/dev/zero of=test.tmp oflag=direct bs=8M count=64Read speed command :
$ dd if=test.tmp of=/dev/null iflag=direct bs=8M count=64

	ODROID-C2	ODROID-C1	Raspberry Pi2
MicroSD UHS-1 Read(MB/s)	36.7	32.5	19.2
MicroSD UHS-1 Write(MB/s)	15.5	14.2	13.2
eMMC Read(MB/s)	125.0	62.2	NA
eMMC Write(MB/s)	124.0	25.2	NA

Ethernet Performance ComparisonThe ODRID-C2 has an on-board Gigabit Ethernet controller. Our bi-directional streaming speed was measured at ~900Mbps.
Thanks to the doubled Tx buffer in S905, the upload speed is twice faster than C1.

	ODROID-C2	ODROID-C1	Raspberry Pi2
iperf Server on SBC (Mbit/sec)	935.0	9280	98.6
iperf Server on PC (Mbit/sec)	928.0	392.0	66.5

Test condition
Server mode : iperf -s
Client Mode : iperf -c [ip address] -P 10 -W 32k

The 4K HDMI output shows gorgeous desktop screen on 3840 x 2160 UHD resolution.
But the rendering speed is not good due to the limited performance.4K video playback on the Android OS is quite stable and fast for 4K/HEVC playback on a real 4K display.

SPECIFICATIONS

Processor	Amlogic S905 SoC ARM® Cortex®-A53 (ARMv8) 2.0GHz Quad Core ARMv8 architecture @28nm wafer
Memory	2Gbyte DDR3 SDRAM
3D Accelerator	ARM® Mali™-450 OpenGL ES 2.0 / 1.1 (3 x Pixel processors and 2 x Vertex shader processors)
Flash Storage	eMMC 5.0 Module Socket : 8~64GB eMMC module (option) MicroSD Card Slot : 8 ~128GB MicroSD UHS-1 (option)
USB2.0 Host	High speed standard A type connector x 4 ports
USB2.0 Device/OTG	High Speed USB standard A type connector x 1 port
Ethernet/LAN	10/100/1000Mbps Ethernet with RJ-45 Jack (Auto-MDIX support)
Video Output	HDMI2.0
Audio Output	HDMI / I2S
Camera Input	USB 720p(option)
IO Expansion	40pin port (GPIO / UART / I2C / ADC) 7pin port (I2S)
WiFi	USB IEEE 802.11b/g/n WLAN with Antenna (USB module) (option)
Power	5V 2A Power (option)
System Software	Ubuntu 16.04 on Kernel 3.14 Android 5.1.x on Kernel 3.14 Full source code is accessible via our Github.
Board Size	85 x 56 x 18 mm approx. (Weight : 40 gram w/o heat sink, 56 gram with heat sink) PCB Thickness : 1.0mm

BOARD REVISION HISTORY

Board Revision 0.0

When we first got the information of S905 and its price, we were so amazed. We had started outlining the product concept. It was rather simple. The ODROID-C1+ fulfils the most of customers’ requirement.

The hardware design of the ODROID-C2 was started from May 2015. The performance of the S905 is twice faster than S805, and it support HS400 eMMC Mode which also increase the data transfer speed two time faster. The RAM is also doubled to 2GB on C2 while the C1+ has 1GB. There are 4 x 512MB RAMs, two on top and two on bottom.

The first revision had same blue color as C1+.

This revision was used only for internal software development and evaluation.

Board Revision 0.1

It took around two months to evaluate and update the hardware design. The first revision board was on our hands in September 2015. The color of the C2 PCB is changed to black from this revision for easier distinguish from the C1+ board.

ARMv8 64bit processor requires more optimization work than our expectation. After 9months software work, we could send around 40 units of this revision to forum members in January 2016. http://forum.odroid.com/viewtopic.php?f=135&t=18683
We give special thanks to our valuable forum members for the feedback and support on this project.

We officially announced this project via our forum in February 2016.

Board Revision 0.2

This is the first mass production version.
A few missing/wrong GPIO pins on the 40pin header are corrected.
